Product Description

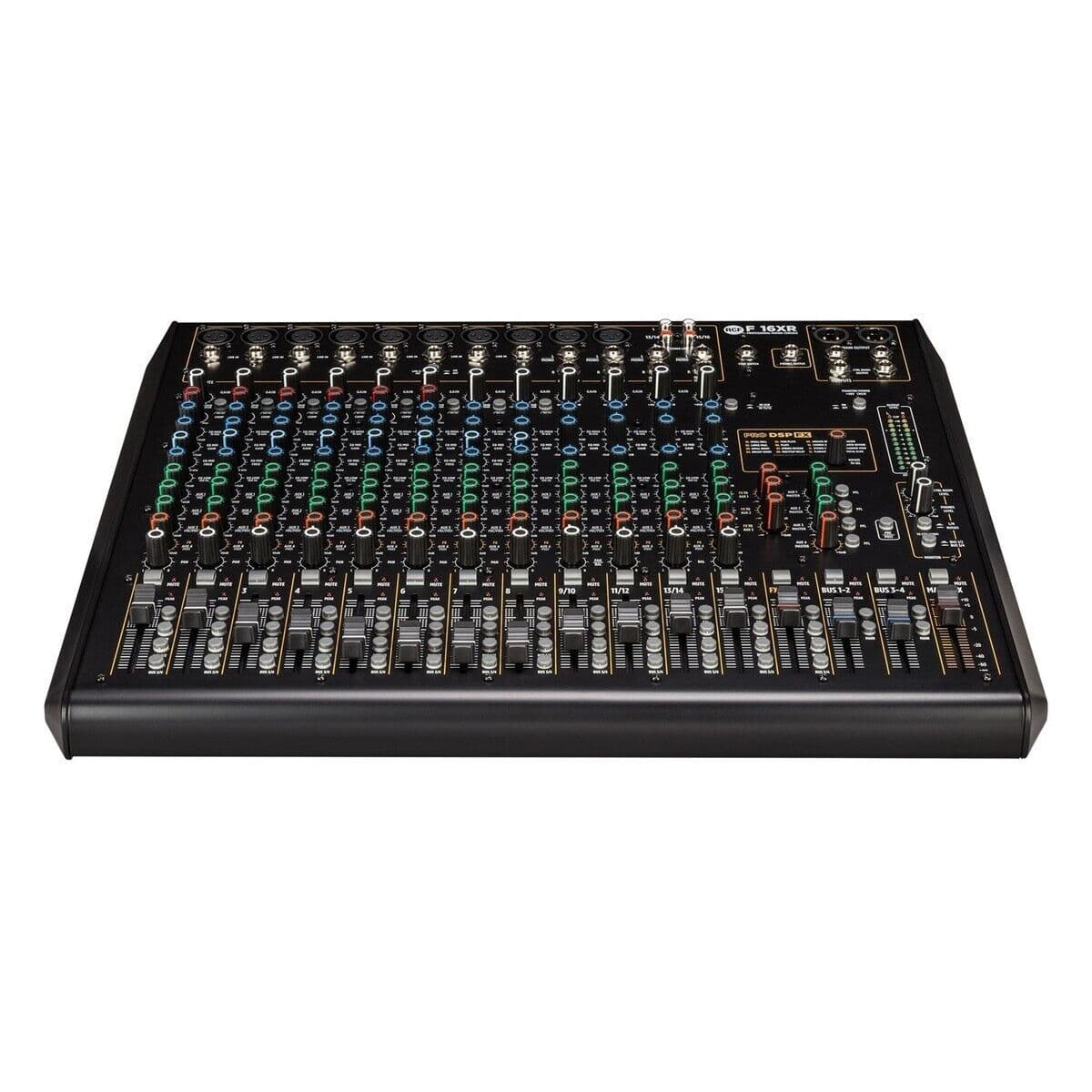

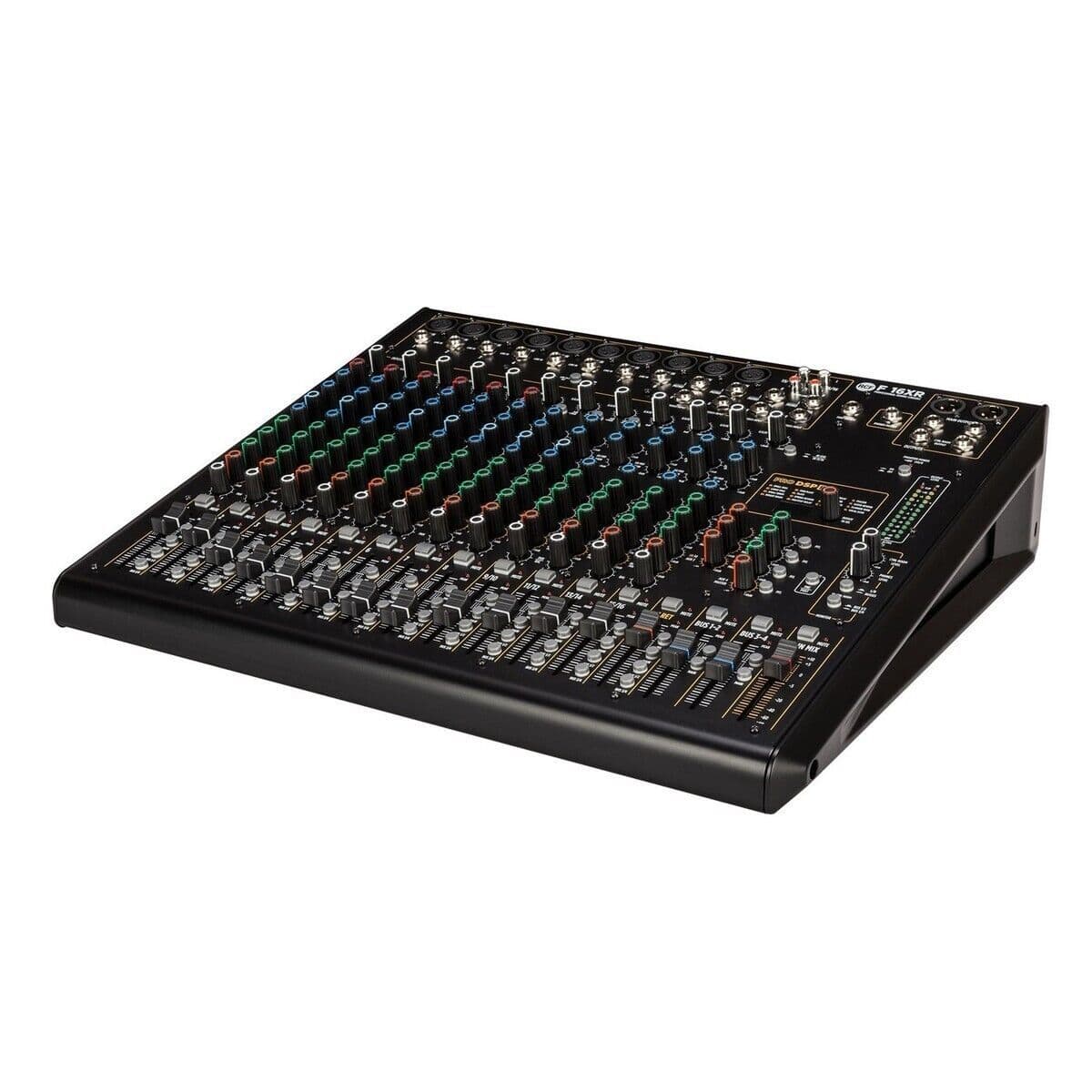

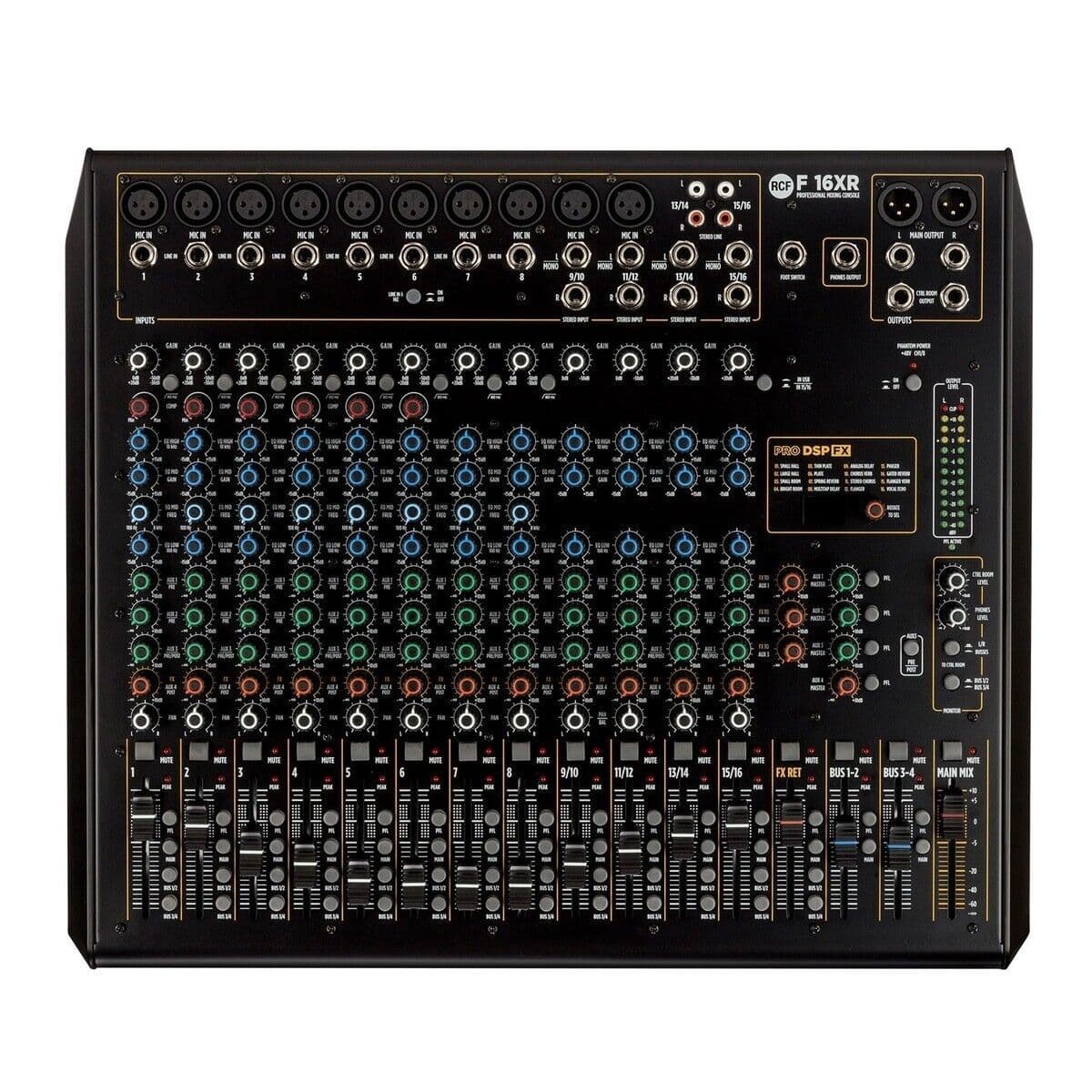

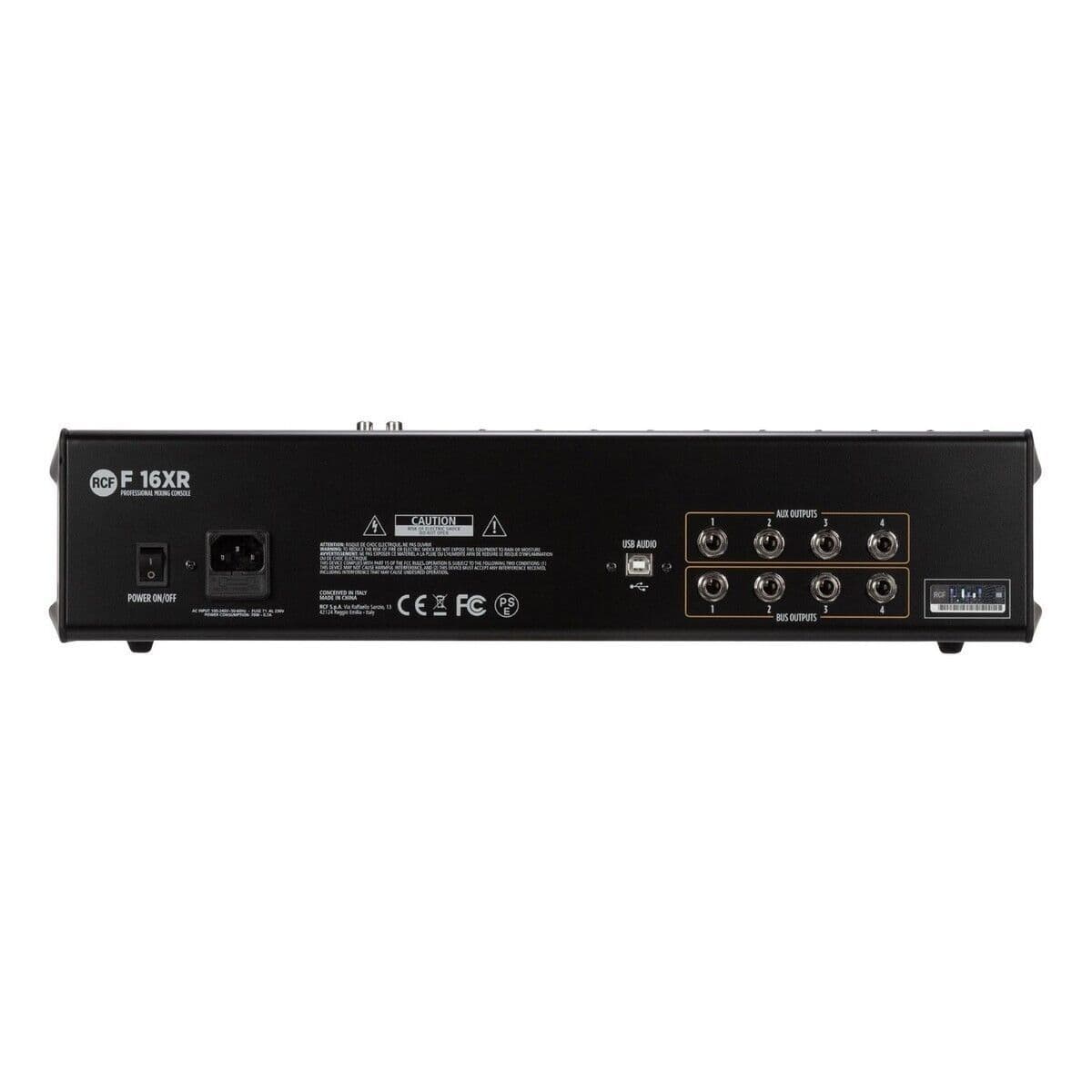

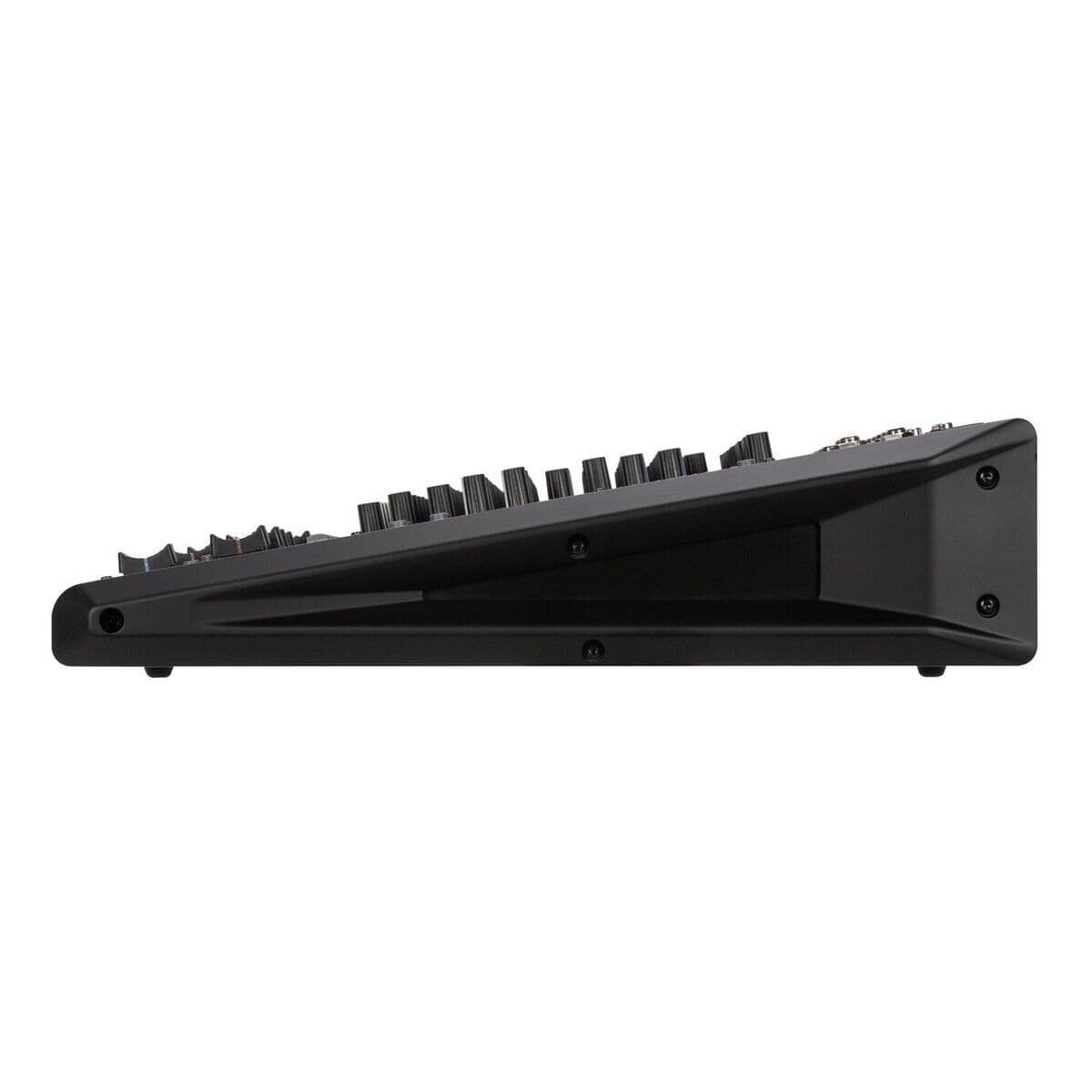

RCF F 16XR 16-Channel Analog Mixer
Versatile Analogue Mixing The RCF F 16XR Mixer picks up where the RCF's iconic E Series left off. Based on the legacy of well-established analogue mixing, the F Series 16XR delivers high quality audio in the form of a robust, powerful, and easy-to-use mixer. A full balanced audio path from input to output, a formidable DSP FX unit, and USB connectivity ensure you've got everything you need for great sound right in front of you. A 3-band EQ for mono channels (and 2-band for stereo channels) allows for precision frequency shaping possibilities. While single control compressors are both powerful and easy-to-use.
24-Bit Digital Effects The RCF F 16XR comes with a whole host of built-in digital effects. Foregoing the need for clunky external units, the RCF F 16XR provides 16 studio-quality effects ideal for a variety of performances. Choose from a selection of reverbs, delays, chorus, and flangers. And cater to any need with FX returns that can be routed to AUXs for personal monitor mixes. This mixer gives you professional effects at a moment's notice.
USB Connectivity Recording your shows couldn't be easier. With high-performance USB connectivity the RCF F 16XR can record performances direct to any computer or laptop without the need for additional interfaces. Select your own USB routing, hear stereo playback, and achieve CD-quality recording. You can also plug directly into the RCF F 16XR for instant DI recording, without the need for external DI boxes. The F 16XR's built-in Hi-Z input effectively boost low level instruments to standardised levels meaning you're always ready to record.
Features 10 Mic preamp inputs, 4 mono line inputs 4 Stereo line inputs PRO DSP FX onboard with 16 presets Stereo recording and playback via USB port 6 single control compressors Balanced main output +28 dB (Stereo XLR + TRS) Two stereo output busses and 4 aux sends (2 pre, 1 pre/post, 1 post) 60 mm faders Internal universal power supply Designed and engineered in Italy Specifications Auxiliary Sends: AUX: 2 pre, 1 pre/post FX Post: 1 Compressors: n°6 Single Control Compressors on Channels 1 to 6 Electrical Specifications: Power Consumption: 30 W Power Supply: Internal Voltage Requirements: 100 V - 240 V Frequency Response: 20 Hz - 20 kHz THD+N, 20dB Gain, 0dBu Out ( A-Weighted): <0.02 EQ: Description: High: +/-15 dB @ 10 kHz Shelving; Mid: +/-15 dB @ Freq. sel. from 100Hz to 8kHz - Bell; Low: +/-15 dB @ 100 Hz Shelving Input Channels EQ: 1 semi parametric / 2 shelving Inputs: Gain Range: 0 dB - 50 dB Gain Selection: 20 dB - -30 dB Hi-Z Line Inputs Impedance: 1 Mohm Hi-Z Line Inputs: 1 Mic Inputs Impedance: 14 kohm Line: 8 Line Input Impedance: 21 kohm Low Cut: 80 Hz Mic: 10 Phantom Power +48 V: Yes Stereo Line: 4 Stereo Line Gain Selection: 20 dB - -30 dB Stereo Line Input Impedance: 14 kohm Internal Effects: Send Effects: 1 Outputs: Aux Output: 4 Aux Send: 3 Control Room: Yes FX Send: 1 Group Out: 4 Main Mix: 1 Phones: 1 Output Specifications: Aux Out Level: 28 dBu Group Out Level: 28 dBu Main Out Level: 28 dBu Phones Out Impedance: 150 ohm Phones Out Level: 10 dBm USB Audio: Play TRK: 2 Rec TRK: 2 Supported Sample Rate: 44.1, 48.0 kHz Type: B Dimensions: 406 x 479 x 107 mm Weight: 6.4 kg PLEASE DO NOT OPEN A CASE INSTEAD CONTACT US FIRST WE DON'T MAKE THE GOODS BUT WILL DEFINITELY DO OUR BEST TO RESOLVE MATTERS PLEASE NOTE THAT DELIVERY TIME ESTIMATES ARE PROVIDED BY EBAY NOT US
