Product Description
Adastra Z44R Zoning Mixer Serves Up to 4 Different Zones from 4 Inputs Control Each Area with Independent Line Volume Control 19" 1U Rackmountable Ideal for Installations or PA Applications

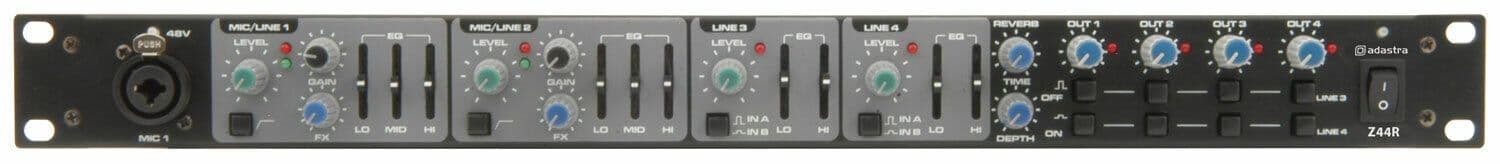

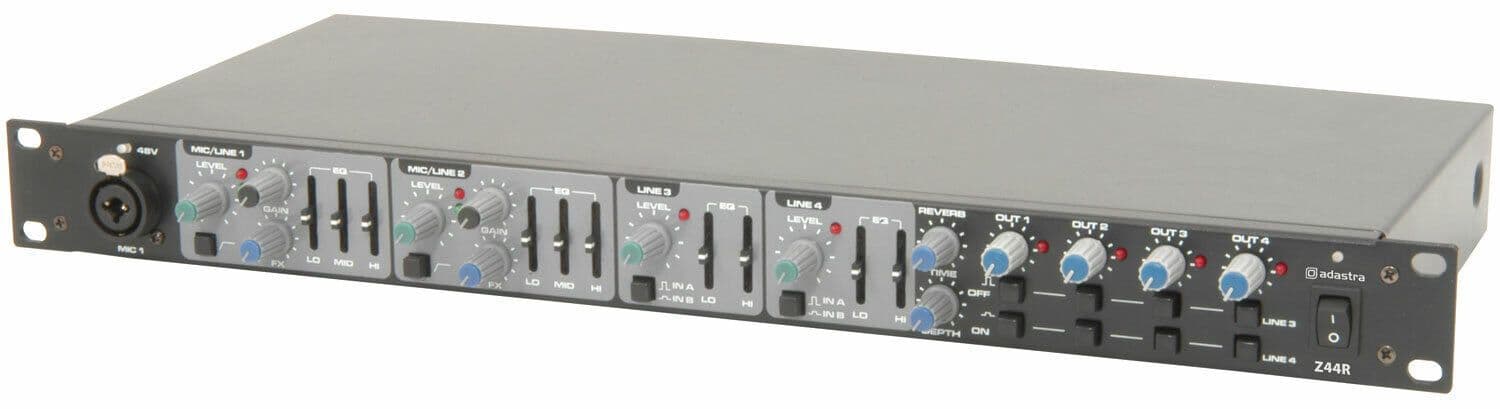

1U live/zoning rack mixer with 2 mic/line inputs and 2 stereo line inputs feeding 4 stereo outputs. Mic channels feed to all outputs, whereas the stereo channels are switchable to any required zone. Applications vary from additional vocal mixing for DJ set-ups to multi-room zoning for venues and many other scenarios.
Features: Switchable 48V phantom power Lo-cut rumble filter for mic channels 3-band EQ for mic channels 2-band EQ for stereo channels Foot-switchable internal DSP reverb or ext. FX 4 stereo zone outputs with level controls

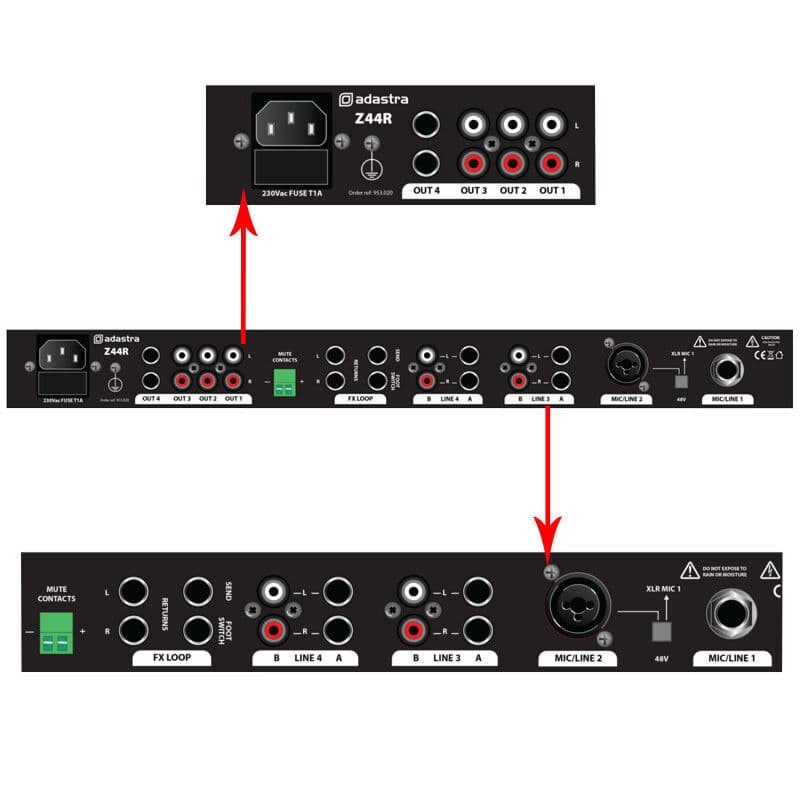

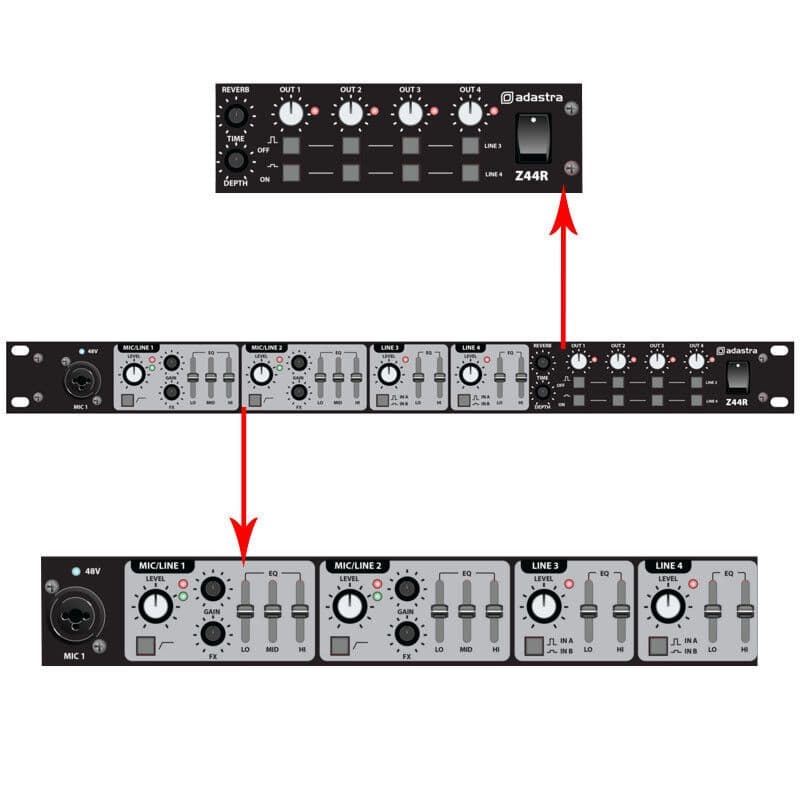

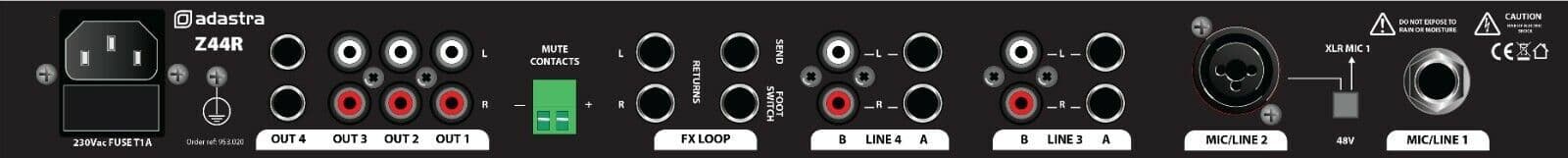

Specifications: Power supply: 230Vac, 50Hz (IEC) Mic/line channel inputs: Ch 1 front combo and rear jack, Ch 2 combo (rear) Mic/line channel controls: Level, Lo-cut, Gain, FX and Lo/Mid/Hi EQ faders Line 3 + 4 stereo inputs: Input A (L+R) 6.3mm jack / Input B (L+R) RCA Line 3 + 4 stereo controls: Level, In A/B and Lo/Hi EQ faders Output connections: Outputs 1-3 (L+R) RCA, Output 4 (L+R) 6.3mm jack Output controls: Level, Line 3 on/off, Line 4 on/off FX connections: (6.3mm jack)Footswitch, Send (defeats onboard reverb), L+R Return FX controls: Reverb time, Depth (onboard or external level) Indicators (LED): Power, 48V, Mic/line signal+peak, Line peak, Output peak Fire alarm contacts: Modular terminal, make-to-mute all except Mic 1 Dimensions: 483 x 44 x 220mm Weight: 2.75kg PLEASE DO NOT OPEN A CASE INSTEAD CONTACT US FIRST WE DON'T MAKE THE GOODS BUT WILL DEFINITELY DO OUR BEST TO RESOLVE MATTERS PLEASE NOTE THAT DELIVERY TIME ESTIMATES ARE PROVIDED BY EBAY NOT US
